BoltMeter Ultrasonic Bolt Tension Monitor

Ultrasonic Bolt Tension Monitor.

Clear

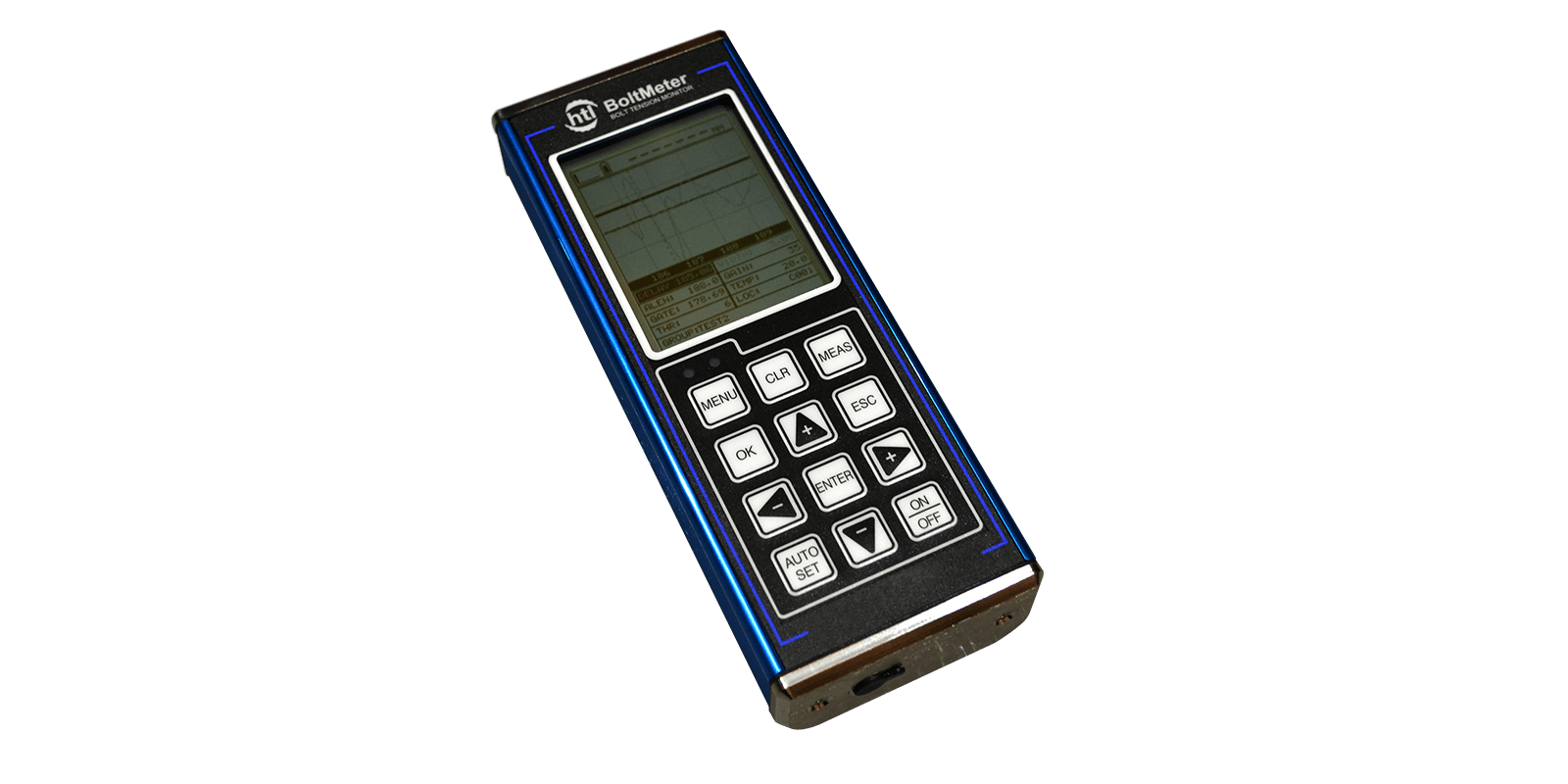

BoltMeter Ultrasonic Bolt Tension Monitor

BoltMeter easily and accurately measures the elongation produced by tightening a threaded fastener, from 1/2 to 8 feet in length. Using ultrasonic measurements BoltMeter can accurately measure bolt elongation, load, stress and percentage strain.

A data logger which can store up to 8,000 bolt readings in multiple groups ensures the user can monitor bolts during periodic shutdowns over the service life of the fastener whilst also visually compare unloaded and loaded waveforms.

Offering complete control of bolting processes, BoltMeter’s built-in data recording feature and supporting software for Windows PC & MAC OSX ensures BoltMeter offers an easy to use and reliable solution for the most difficult bolting problems.

Features and Benefits

  • Accurately measure elongation, load, stress, and percentage strain
  • Effectively monitor bolts during periodic shutdowns

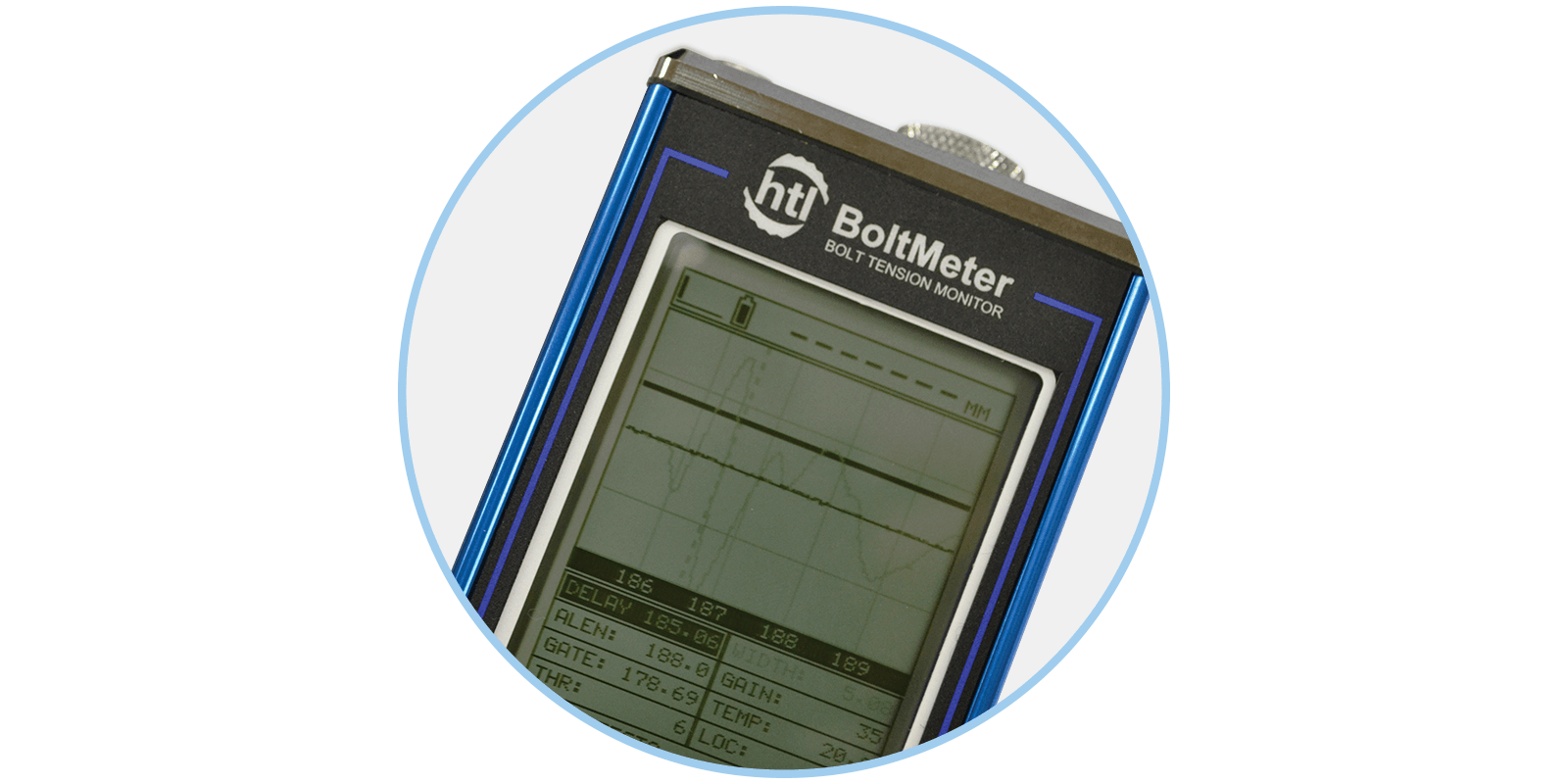

  • Visually compare the unloaded to the loaded waveform
  • Stores 8,000 readings and waveforms in multiple groups
  • Built-in linear regression or vector for optimizing load measurements
  • RF rectified and large digits including limits bar display options
  • 240 x 160 pixel display resolution
  • Auto-Set feature automatically optimizes detection and adjusts the display
  • 64 custom user-defined setup options
  • Temperature probe for automatic temperature compensation
  • Fixed, single, and two-point zero calibration options
BoltMeter

Full suite of training

With a full suite of training options available globally, we can accommodate every training requirement for BoltMeter.


BoltMeter

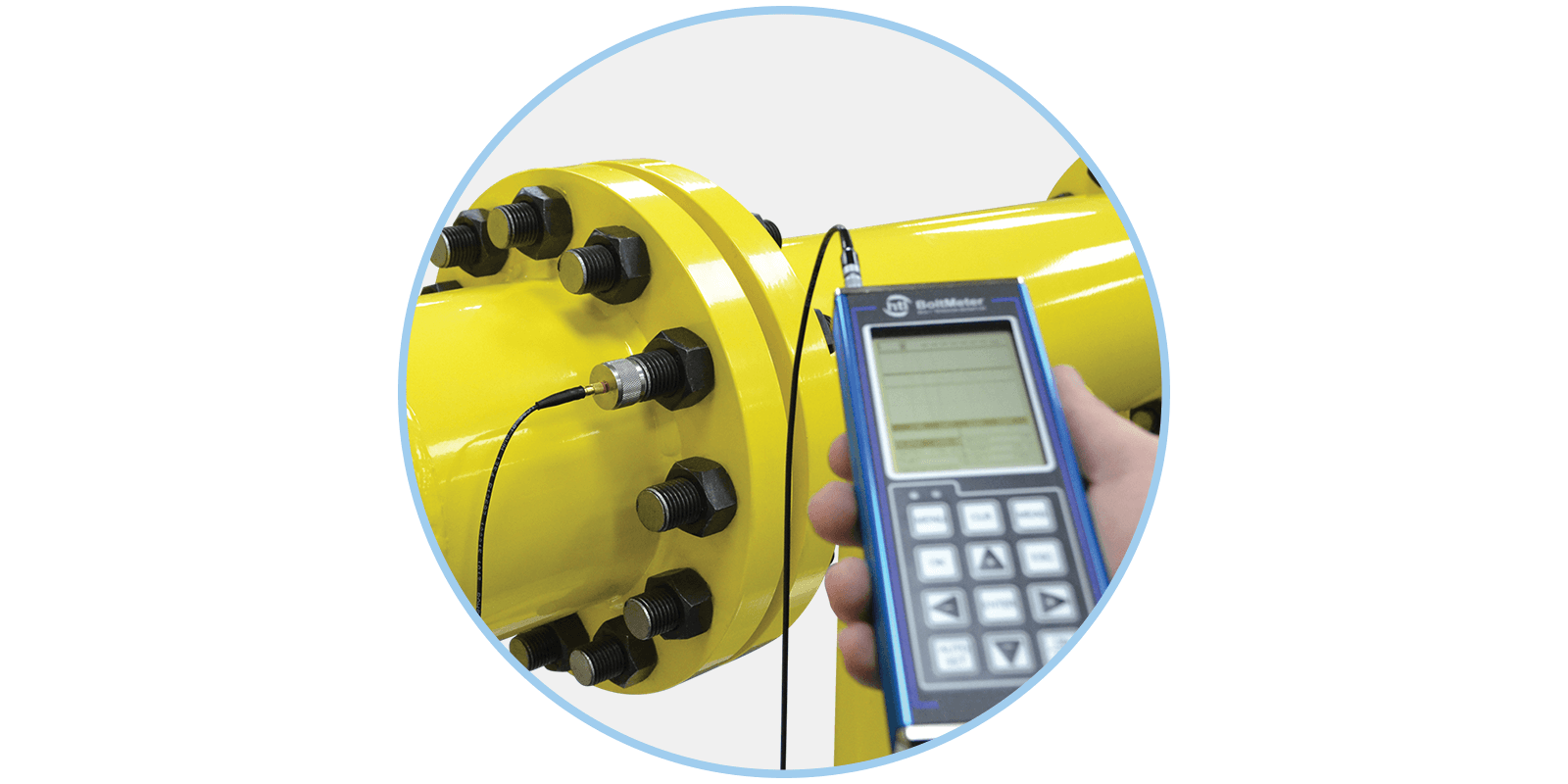

Minor access

Only minor access is required ensuring BoltMeter is a reliable solution even where bolt access is limited.


BoltMeter

Data recording

BoltMeter’s built-in data recording feature can create a permanent record for bolts and joints making it extremely useful for in-service monitoring.


CE Approved
