HTL-S 3-in-1 Square Drive Attachment

  • Fully interchangeable with many other well-known brands
  • Made in the UK
  • Supplied with Link Pin Retainer
HTL-S Square Drive Attachment

Square Drive Sizes

3/4” to 2 1/2”

Calibration Accuracy

+/- 3%

Torque Ranges

202 to 39,681 Nm  149 to 29,267 lbf.ft

Weight

2.7 - 40.0 Kg  6.0 - 88.9 lbs
  • HTL-S Square Drive Attachment
  • HTL-S Square Drive Attachment
  • HTL-S Square Drive Attachment
  • HTL-S Square Drive Attachment
  • HTL-S Square Drive Attachment

3-in-1 Square Drive Attachment

Part of the innovative HTL 3-in-1 Modular System

Clear

3-in-1 Square Drive Attachment

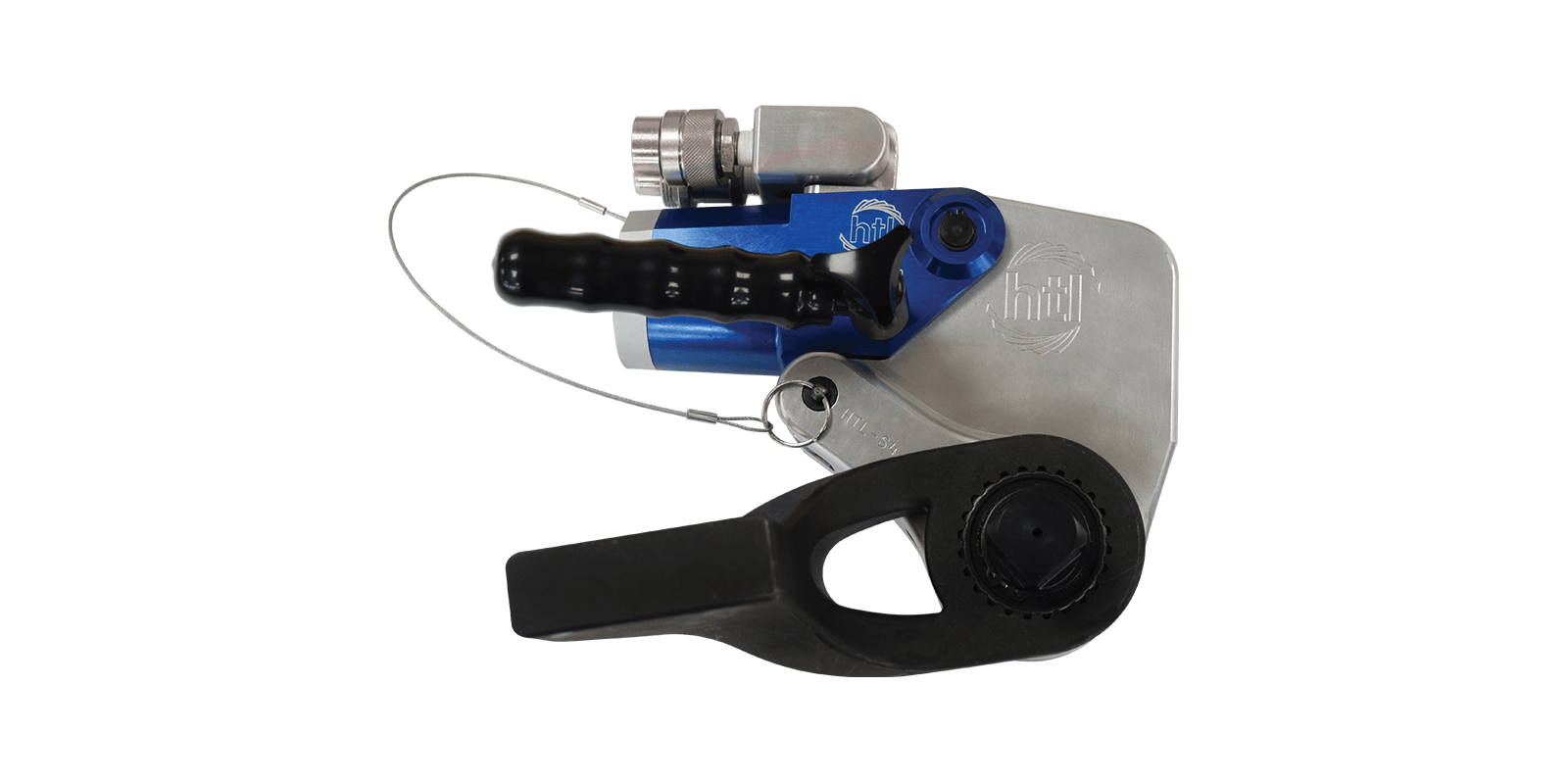

The HTL Square Drive Torque Wrench Attachment is part of HTL’s innovative 3-in-1 Hydraulic Torque Wrench range and works with HTL’s range of ‘W’ Low Profile Hydraulic Torque Wrenches.

Due to its innovative design and the high quality materials used, this tool is extremely durable and easy to operate. A 360 degree, fully adjustable in-line reaction arm ensures the operator can select a reaction point to suit any application.

With square drive attachment sizes available from 3/4” to 2 1/2” and torque ranges from 149 to 29,267 lbf.ft (202 to 39,681 Nm) the HTL Square Drive Torque Wrench Attachment is suitable for a wide range of applications.

Interchangeable and Cross Compatible Design

The design ensures that the operator can interchange ratchet links with many other well-known brands.

Features and Benefits

  • Interchangeable with other manufacturers
  • Fully adjustable 360 degree in-line reaction arm
  • Push button, quick release, reversible square drive
  • Fine tooth rachet prevents locking-on
  • Square drive sizes from 3/4” to 2 1/2
HTL-S Square Drive Attachment

Interchangeable and Cross Compatible Design

The design ensures that the operator can interchange ratchet links with many other well-known brands (specifically Hytorc, Rapid-Torc and Atlas Copco).


HTL-S Square Drive Attachment

Maximum Reliability and Minimum Maintenance

Only a few moving parts for reliability and maintenance.


HTL-S Square Drive Attachment

A Reaction Point To Suit Any Application

A 360 degree, fully adjustable in-line reaction arm ensures the operator can select a reaction point to suit any application.


Atex Approved
CE Approved
Made in the UK
Hands Free Bolting Compatible
12 Month Warranty
