HTL Tensioner Pumps

  • High pressure is held without energy consumption
  • Made in the UK
  • Explosion proof, requires no electrical power
HTL Tensioner Pumps Product Image

Flow Rate

Standard: 0.72 Litres/Min  High Flow: 1.14 Litres/Min

Max Pressure

1500 bar  21,750 psi

Air Consumption

800 1600 Litres/Min  1600 Litres/Min

Weight

19 - 23 kg
  • HTL Tensioner Pumps Product Gallery 2
  • HTL Tensioner Pumps Product Gallery 3
  • HTL Tensioner Pumps Product Gallery 1

Tensioner Pumps

Clear

Tensioner Pumps

The air operated Tensioner Pump has been designed and constructed within a stainless steel frame to avoid corrosion in the harshest of environments and has been designed to be failsafe, user friendly, lightweight and compact. The unit works on a simple but efficient principle, building pressure magnified through differential piston sizes.

A large piston drives a smaller hydraulic piston, which provides flow at high pressure. For additional efficiency, all the usable components are ergonomically positioned, with an easy to read gauge located on the front of the pump.

Features and Benefits

  • Hydraulic pressure is held without energy consumption
  • Explosion proof, requires no electrical power
  • Intrinsically safe
  • Compact and lightweight
  • Contamination tolerant
  • Outlet stall pressure predetermined by the air drive regulator
  • Ideal for stop/ start applications under full load
  • Easy to install and operate
  • ATEX Approval as an optional extra
HTL Tensioner Pumps Product Gallery 3

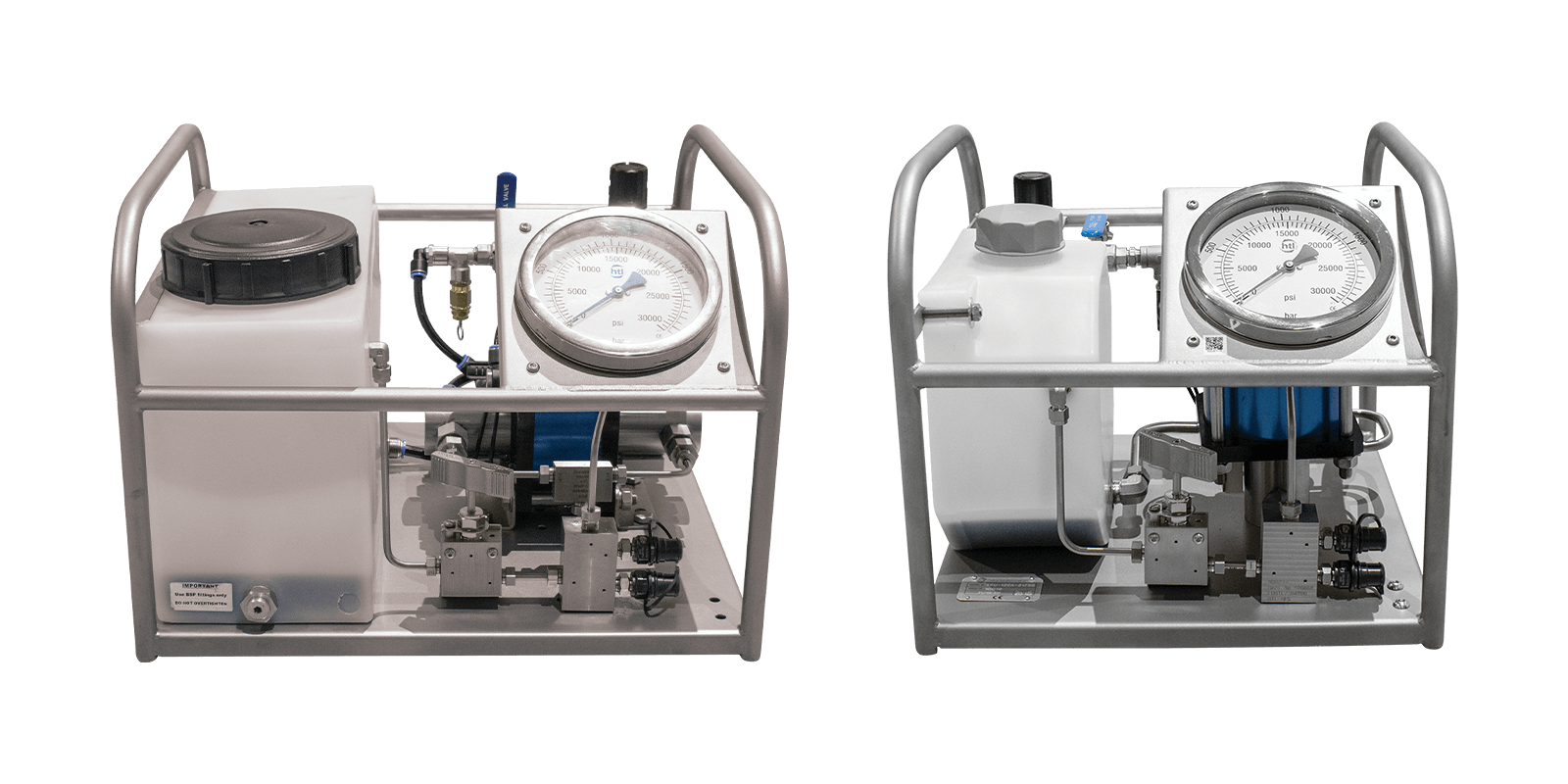

Two Output Options Available

The HTL Tensioner pumps come in two standard variations, a standard pump for regular applications and a high flow variation, perfect for time sensitive projects.

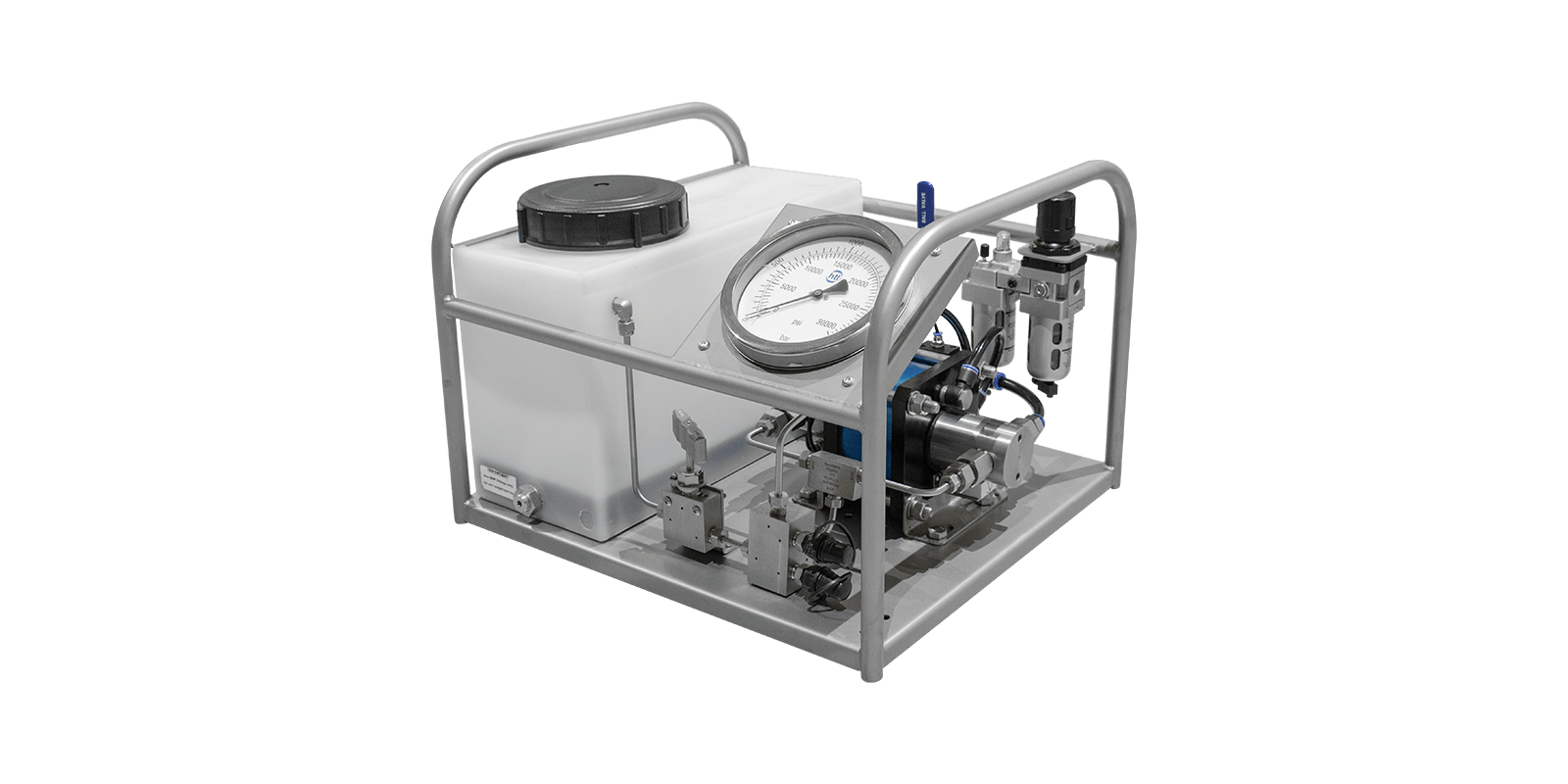

HTL Tensioner Pumps Product Gallery 2

Intrinsically Safe

The tensioner pump has been designed and constructed within a stainless steel frame to avoid corrosion in the harshest of environments and has been designed to be failsafe, user friendly, lightweight and compact.


CE Approved
Made in the UK
12 Month Warranty
