HTL Air & Electric Hydraulic Torque Pumps

  • Protective frame design
  • Precision, calibrated pressure gauge
  • Multi-tool manifold as standard
HTL Hydraulic Torque Pump

Flow Rate

0.5 - 6.4 L/Min  0.1 - 1.4 Gal/Min

Power Types

Air & Electric  (110v and 220v)

Manifold

Single or  4 Port

Weight

32 Kg  70 Lbs
  • HTL Hydraulic Torque Pump
  • HTL Hydraulic Torque Pump
  • HTL Hydraulic Torque Pump
  • HTL Hydraulic Torque Pump
  • HTL Hydraulic Torque Pump
  • HTL Hydraulic Torque Pump
  • HTL Hydraulic Torque Pump

Hydraulic Torque Pumps

A very compact and efficient solution.

Clear

Hydraulic Torque Pumps

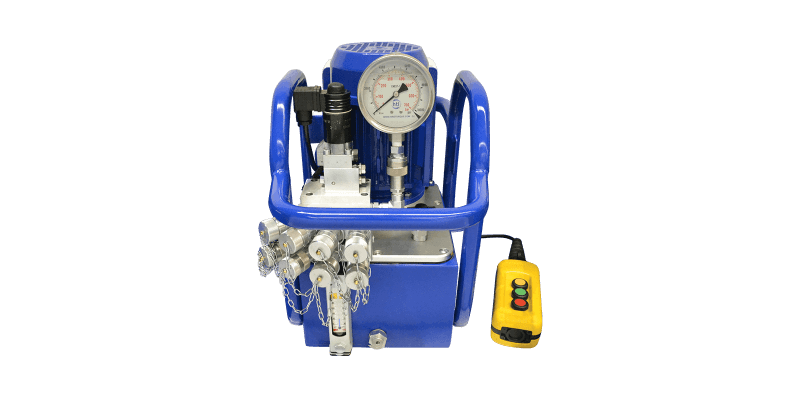

The HTL Hydraulic Torque Pump is a lightweight and portable solution which has been designed to be user friendly ensuring ease of use for the operator whilst offering maximum efficiency.

With a maximum operating pressure of 10,000 psi / 700 bar and a precision pressure regulating valve HTLs range of torque pumps can be used with most leading brands of hydraulic torque tools.

Incorporating a compact solenoid valve system, protective frame and precision calibrated pressure gauge the HTL Hydraulic Torque Pump can be supplied with a multi-tool manifold allowing up to four tools to be used simultaneously ensuring equal parallel closure of flanges and joints, alternatively the pump can be supplied with a single tool manifold.

Features and Benefits

  • Single tool or multi tool models available
  • Solenoid valve system
  • Protective frame design
  • Robust hand control
  • Precision, calibrated pressure gauge
  • Oil level sight glass

Each pump comes complete with:

  • Full calibration certificate
  • Letter of Conformity
  • Spare parts list
  • Operating instructions
  • HTL Pro-46 Hydraulic Oil
  • Twin line hose assembly (custom lengths available)

Compact and Efficient Solution

These recent innovations offer a very compact and efficient solution. A brand new valve system which replaces the old temperamental shear seal system
eradicates downtime giving the pumps a far greater life cycle increasing performance, durability and efficiency.


User Friendly and Portable

Each pump is user friendly and portable, incorporating an ergonomically designed carrying frame and four quick connect ports to enable up to 4 torque wrenches to be operated simultaneously, even in the harshest environments.


CE Approved
Made in the UK
12 Month Warranty
