Square Drive Hydraulic Torque Wrench

  • Fully interchangeable with many other well-known brands
  • Made in the UK
  • Supplied with Link Pin Retainer

Torque Range

202 to 39,681 Nm  149 to 29,267 lbf.ft

Square Drive Sizes

3/4” to 2 1/2”

Integrated Safety Features

Ergonomic Handle, Link Pin   Retainer & Tether

Weight

3.7 - 51.4 Kg  8.2 - 113.3 lbs
  • HTL S Buying Guide Product Gallery

Square Drive Hydraulic Torque Wrench

Clear

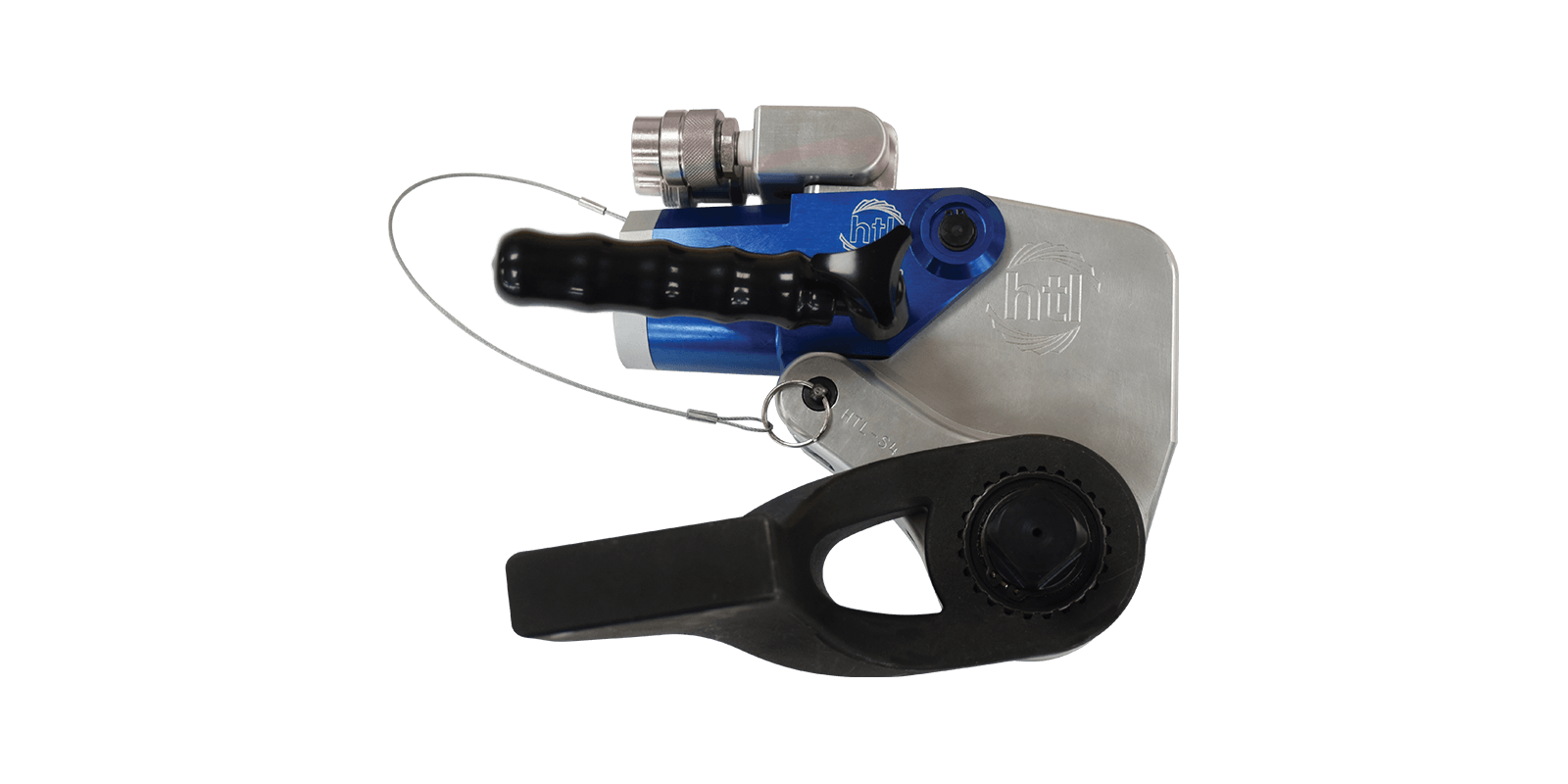

Square Drive Hydraulic Torque Wrench

HTL’s innovative Square Drive Torque Wrench is part of the 3-in-1 range. This Hydraulic Torque Wrench can be used for a wide range of applications.

Extremely durable, this premium tool is made from the highest quality materials and is amongst the most innovative torque tooling designed to date. This ensures that with the use of the HTL Square Drive, the operator can not only utilise other attachments in the 3-in-1 range, but also interchange these with many other well-known brands.

Due to its innovative design and the high quality materials used, this tool is extremely durable and easy to operate. A 360 degree, fully adjustable in-line reaction arm ensures the operator can select a reaction point to suit any application. Square drive attachment sizes are available from 3/4” to 2 1/2” and torque ranges from 149 to 29,267 lbf.ft (202 to 39,681 Nm).

The tool, which is designed and manufactured in the UK, comes with a 12 month warranty and full CE and ATEX approval.

Operator Safety

To improve operator safety HTL have also designed an ergonomic, adjustable torque wrench handle which can be easily fitted to HTL’s Square Drive Hydraulic Torque Wrench. This lightweight, durable accessory can prevent injuries such as trapped fingers by eliminating the need to hold the tool itself.

The HTL Square Drive Hydraulic Torque Wrench is also supplied with a link pin retainer as standard.

Features & Benefits

  • Interchangeable with other manufacturers
  • Fully adjustable 360 degree in-line reaction arm
  • Push button, quick release, reversible square drive
  • Fine tooth rachet prevents locking-on
  • Square drive sizes from 3/4” to 2 1/2

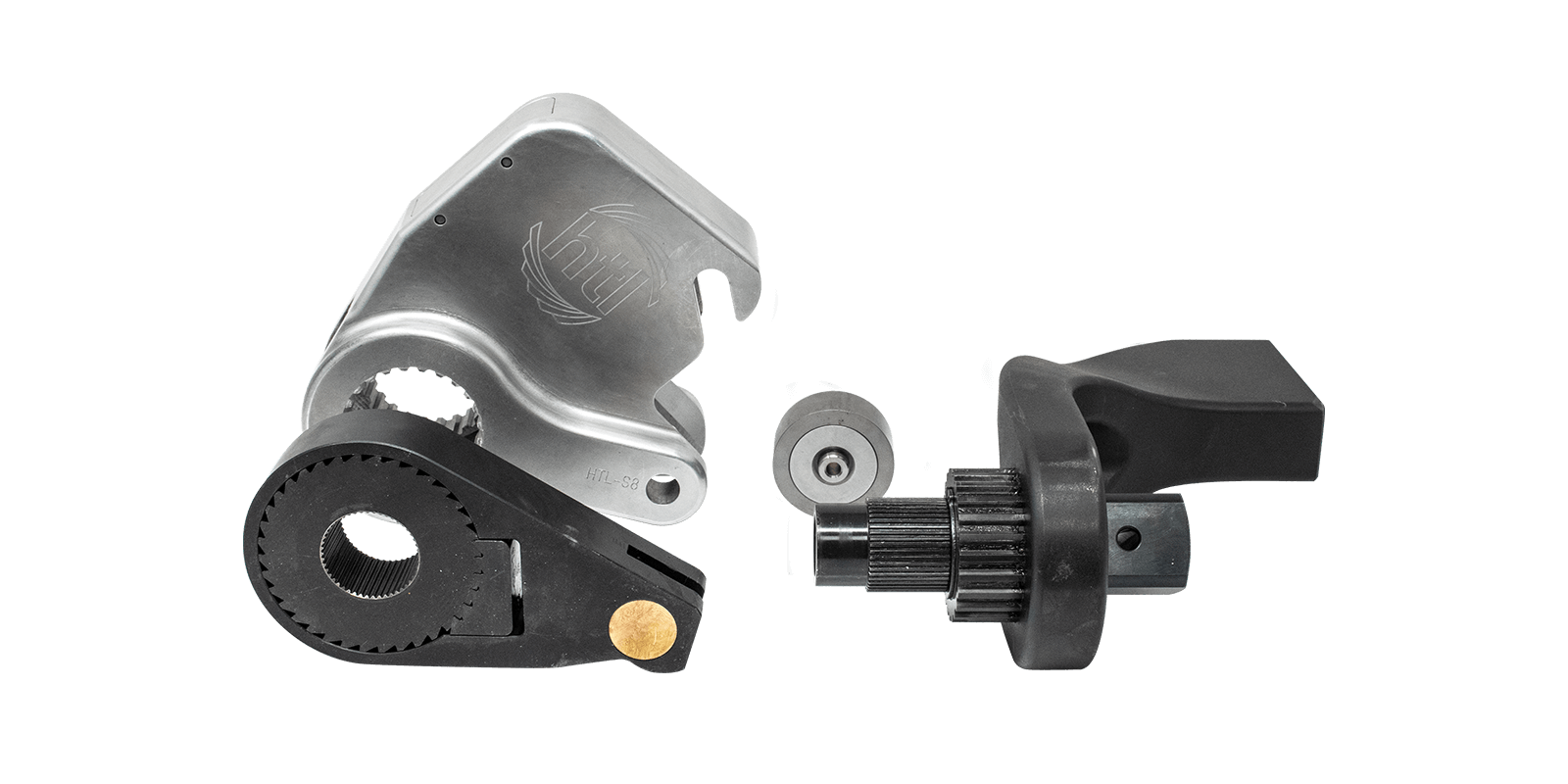

Interchangeable and Cross Compatible Design

The design ensures that the operator can interchange ratchet links with many other well-known brands (specifically Hytorc, Rapid-Torc and Atlas Copco).


Maximum Reliability and Minimum Maintenance

Only a few moving parts for reliability and maintenance.


A Reaction Point To Suit Any Application

A 360 degree, fully adjustable in-line reaction arm ensures the operator can select a reaction point to suit any application.


Atex Approved
CE Approved
Made in the UK
Hands Free Bolting Compatible
12 Month Warranty
